Product STRAINERS

Fitton Industrial

BASKET STRAINER

  • Size : from 2” to 16”
  • Pressure : 150 – PN10/16
  • Test : API 598
  • Material : Carbon Steel, Stainless Steel, and Other Materials on Request.
  • Distance between flanges : ASME B16.10
  • Connected in accordance with standard : ASME B16.5 / EN-DIN1092-1
  • Medium : The filter is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.

Fitton Industrial

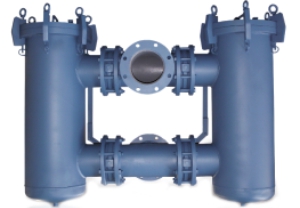

DUPLEX STRAINER

  • Size : from 2” to 16”
  • Pressure : 150 – PN10/16
  • Test : API 598
  • Material : Carbon steel, stainless steel, and other materials on request
  • Distance between flanges : According to plans
  • Connected in accordance with standard : ASME B16.5 / EN-DIN1092-1
  • Medium : The filter is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.

Fitton Industrial

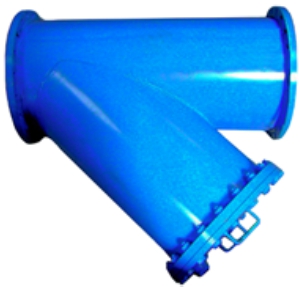

Y TYPE STRAINER

  • Size : from 10” to 24”
  • Pressure : 150 – PN10/16
  • Test : EN 12266-1 P10
  • Material : Carbon Steel, Stainless Steel, and Other Materials on Request
  • Distance between flanges : EN 558-1 SERIES 1
  • Connected in accordance with standard : ASME B16.5 / EN-DIN1092-1
  • Medium : The filter is suitable for several media including water, steam, oil, gas, petrol products, nitric acid, acetic acid, etc.

Fitton Industrial

T-STRAINER

  • Size : from 3” to 24”
  • Design : ASME B16.9
  • Material : Carbon Steel & Stainless Steel
  • Distance between flanges : ASME B16.25
  • Connected in accordance with standard : ASME B16.5
  • Pressure : 150#, 300#, 400#,600#, 1500# & 2500#

Fitton Industrial

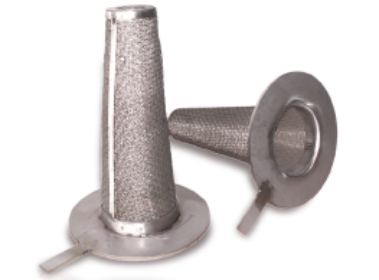

TEMPRORARY STRAINER

  • Size : 1” – 24”
  • Pressure : 150#, 300#, 400#,600#, 1500# & 2500#
  • Test : API 598
  • Material : Carbon Steel WPB, Stainless Steel CF8M
  • Design : Manufacturer standard, Customers Specification available on request.
  • Face to face standard : ASME B16.25
  • End connection standard : ASME B16.25
